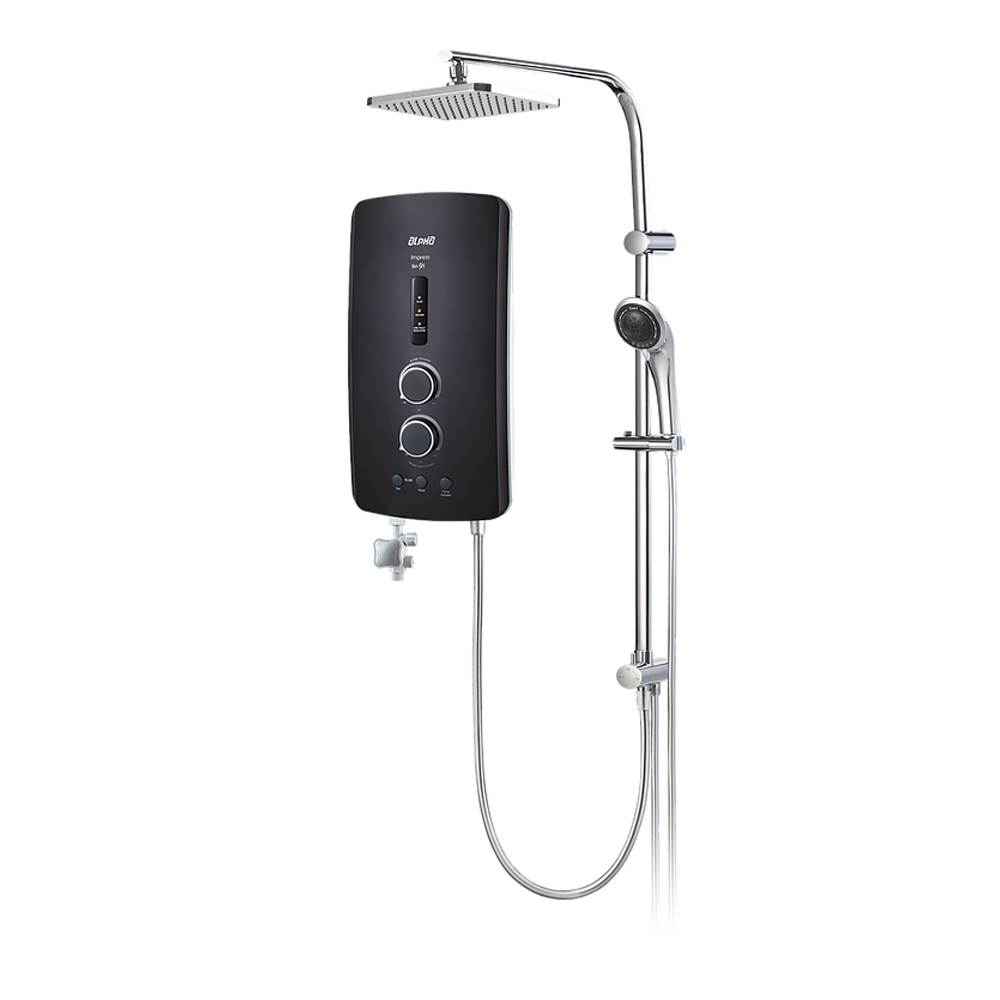

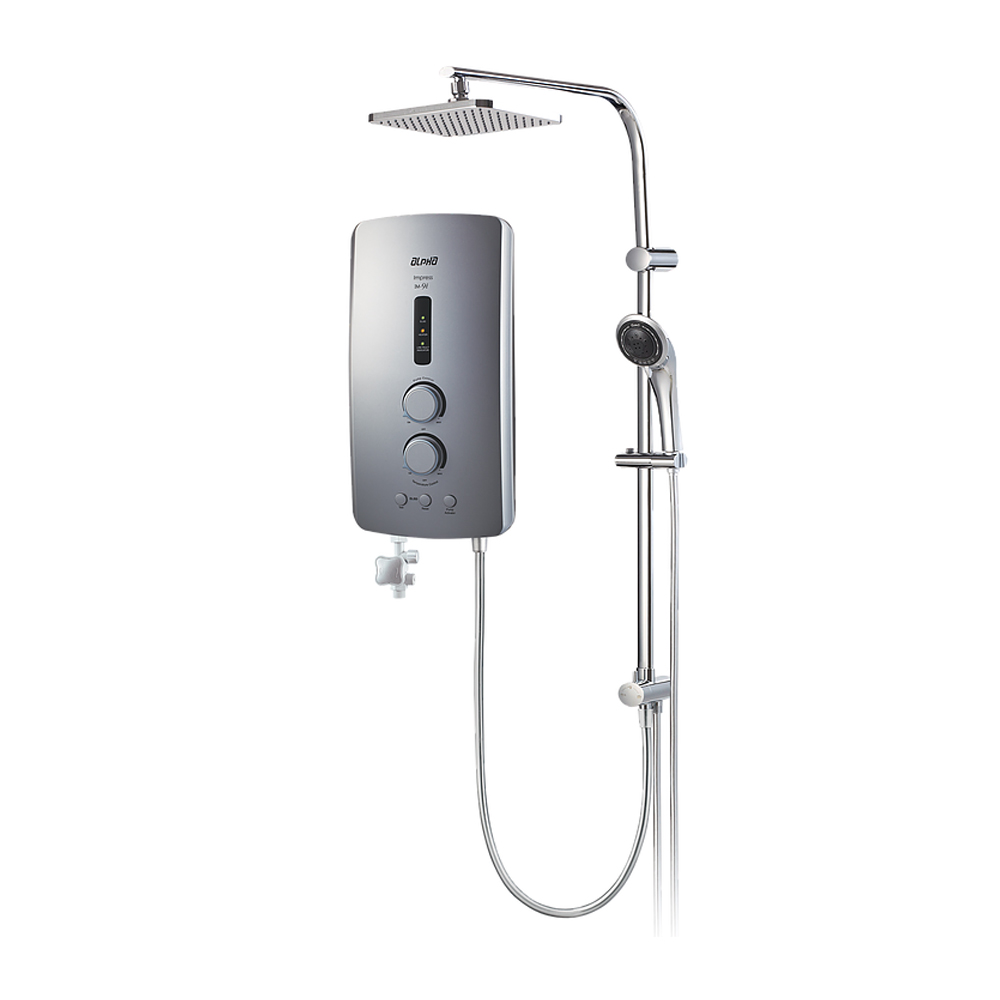

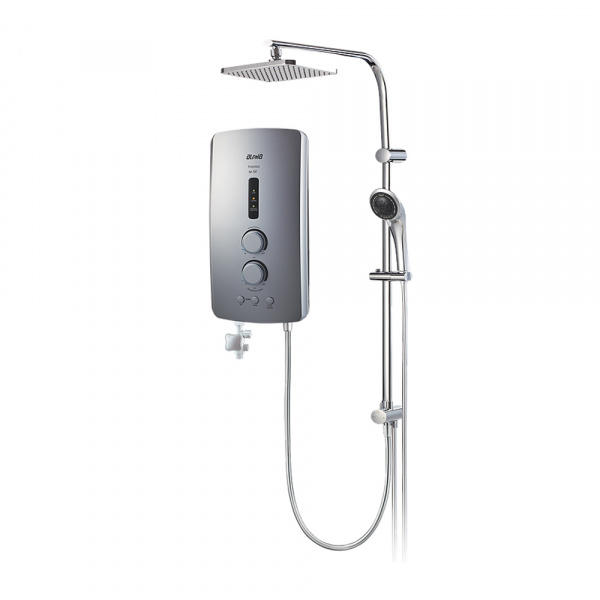

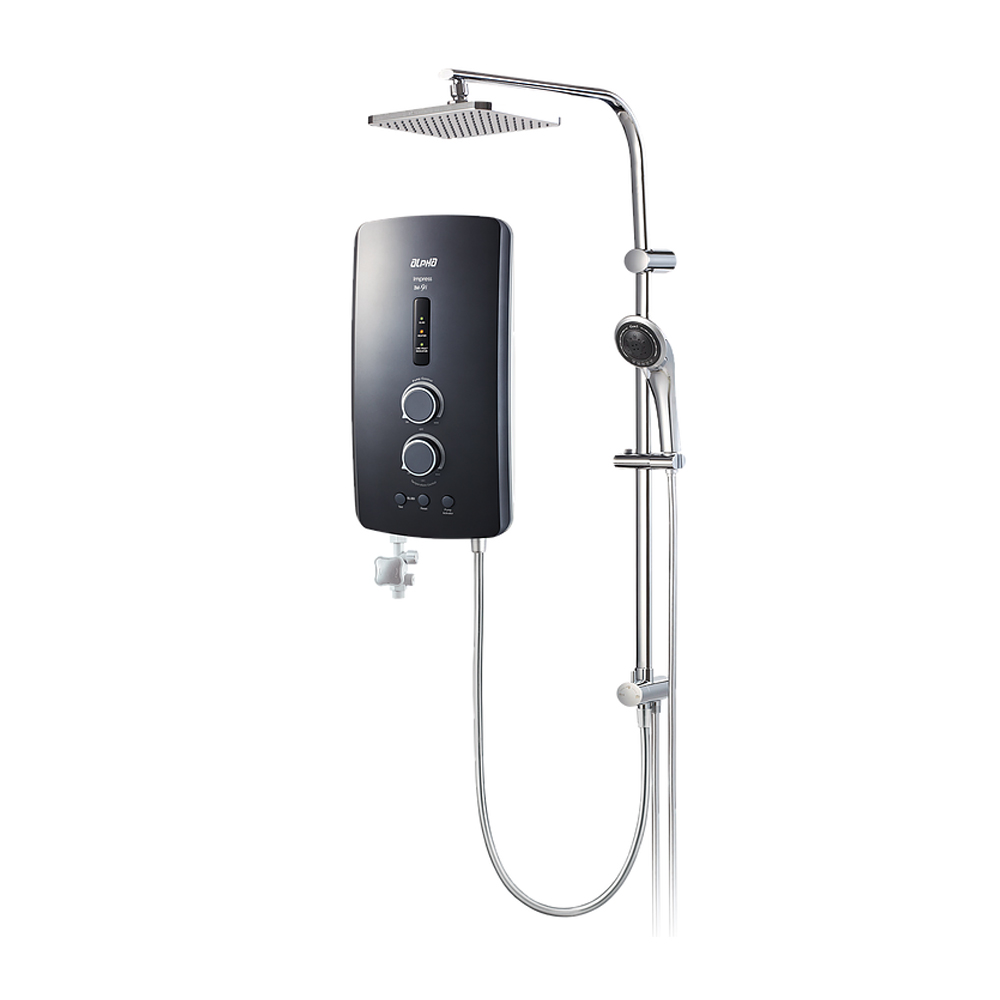

IM-9i Plus Rain Shower
| FEATURES | |
|---|---|
| LINE FAULT INDICATOR | To checks your home's wiring status and detects any improper electrical connection. It will be alerted with the indicator light changing from green to red. |
| DOUBLE RELAY ELSD | In case of electricity surges, both live and neutral current flows will be cut off, ensuring your safety at multiple levels. |
| SAFETY THERMAL CUT-OFF | Automatic & Overload Temperature Control System automatically breaks off power supply if the is abnormal rise in shower temperature. |
| SPLASH PROOF | The casing is designed to provide protection against water seeping into the heater's internal mechanism. |
| NYLON FIBRE INTERNAL | The internal of the heater is build with this strong & durable non-conductive material for futher insulation against electric shock. |
| DC PUMP | Powerful water delivery with maximum energy savings, maintenance free usage and true silent operation. |
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Model | IM-9i Plus Rain Shower |
| Pump Type | DC Pump |
| Pump Rating | 55W |
| Noise Level | <40dB |
| Heater Power Rating | 3.6kW 240V~50Hz |
| Water Connection | 15mm (1/2" BSP),Single Point System |
| Operating Condition | Open Outlet |
| Protection Against Electric Shock | Class 1 |
| Water Temperature Control | Electronics |
| Degree of Protection | IP25 |
| Minimum Flow Rate | 3 Litres / Minute |
| Minimum Pressure | 20kPa ( 0.2 bar / 2.9 psi) |
| Maximum Inlet Pressure | 0.38 MPa (3.8 bar / 55psi) |
| Heater Dimension | 213mm (W) x 406mm(L) x 86mm (H) |
| Nett Weight | 2.5 Kg |
